Bypass TAPs
Portable, managed external Bypass TAPs 100M, 1G, 10G Bypass TAPs

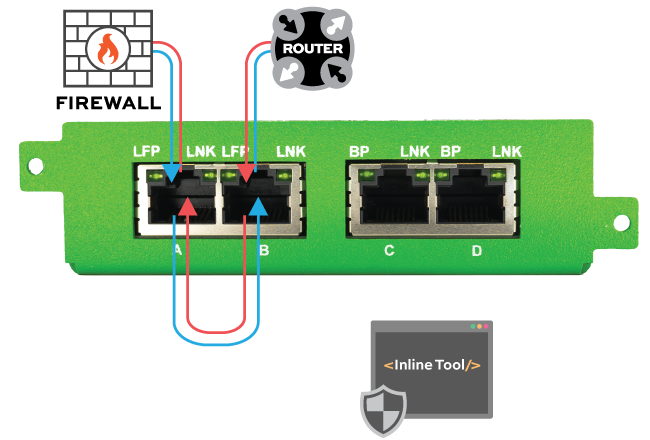

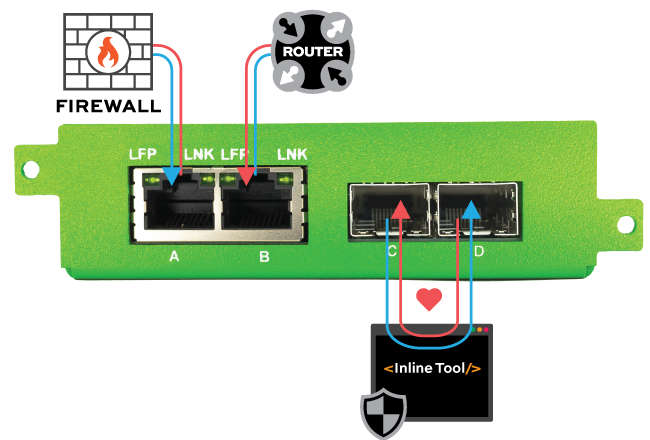

A Bypass TAP, also referred to as a “bypass switch,” provides the capability to manage the availability and reliability of your inline security tools (e.g., IPS, WAF, NGFW) without network downtime or impacting business availability for maintenance or upgrades. A critical component of modern IT security strategies, Bypass TAPs are an industry best practice. Garland Technology’s Bypass TAPs are purpose-built to provide the ultimate safeguard that eliminates single points of failure and reduces network downtime without compromising the network. Take your inline appliance out-of-band without interrupting traffic for sandboxing, updates, maintenance and troubleshooting with a Bypass TAP installed between the network and the inline tool. Garland’s portable, managed Bypass TAPs have a user-friendly GUI for quick set-up and management.
Specifications
Part # |
Network Speed |
Ports |
Power |
|---|---|---|---|
P1GCCBPE |
100/1000M |
(2) Copper Network Ports
|
AC |
P1GCSBPE |
100/1000M |
(2) Copper Network Ports
|
AC |
P1GCCBPPOE+E |
100/1000M |
(2) Copper Network Ports
|
AC |
P1GCSBPPOE+E |
100/1000M |
(2) Copper Network Ports
|
AC |
P1GMCBPE |
1G |
(2) SX MMF Network Ports
|
AC |
P1GMSBPE |
1G |
(2) SX MMF Network Ports
|
AC |
P1GSCBPE |
1G |
(2) LX SMF Network Ports
|
AC |
P1GSSBPE |
1G |
(2) LX SMF Network Ports
|
AC |
P10GMSBPE |
1G/10G |
(2) SR MMF Network Ports
|
AC |
P10GSSBPE |
1G/10G |
(2) LR SMF Network Ports
|
AC |
Network Speed:
100/1000M
Ports:
(2) Copper Network Ports
(2)Copper Monitoring Ports
Power:
AC
Network Speed:
100/1000M
Ports:
(2) Copper Network Ports
(2) SFP Monitoring Ports
Power:
AC
Network Speed:
100/1000M
Ports:
(2) Copper Network Ports
(2) Copper Monitoring Ports
Power:
AC
Network Speed:
100/1000M
Ports:
(2) Copper Network Ports
(2) SFP Monitoring Ports
Power:
AC
Network Speed:
1G
Ports:
(2) SX MMF Network Ports
(2) Copper Monitoring Ports
Power:
AC
Network Speed:
1G
Ports:
(2) SX MMF Network Ports
(2) SFP Monitoring Ports
Power:
AC
Network Speed:
1G
Ports:
(2) LX SMF Network Ports
(2) Copper Monitoring Ports
Power:
AC
Network Speed:
1G
Ports:
(2) LX SMF Network Ports
(2) SFP Monitoring Ports
Power:
AC
Network Speed:
1G/10G
Ports:
(2) SR MMF Network Ports
(2) SFP+ Monitoring Ports
Power:
AC
Network Speed:
1G/10G
Ports:
(2) LR SMF Network Ports
(2) SFP+ Monitoring Ports
Power:
AC
