Managed, Powered Fiber TAPs

A Network TAP (test access point) is a hardware device that allows you to monitor and secure your network traffic by copying packets from a network link without impacting or compromising network integrity.

Garland Technology’s Managed, Powered Multimode Fiber Network TAPs provide full duplex packet visibility in 1G and 10G networks.

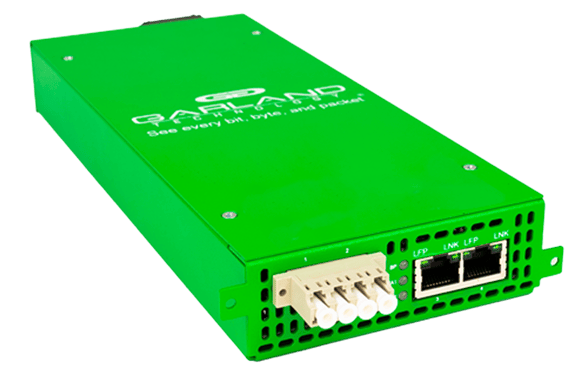

A portable, Powered Multimode Fiber TAP is placed between two (2) network devices to mirror (or copy) the network traffic flowing through those devices. The TAP is managed allowing you to setup filtering on the monitoring ports. The TAP supports breakout, aggregation, and filtering modes. It is ideal for deployments requiring media conversion. Multimode Fiber TAPs are designed for short-range connectivity environments.

Key Features

Multimode 1G-SX and 1G/10G-SR available
Media conversion: 1G-SX to copper, 1G-SX to SFP, and 1G/10G-SR to SFP+
1G/10G-SR models: multiple split ratios available
Easy to use GUI management
Supports 1G and 10G speeds

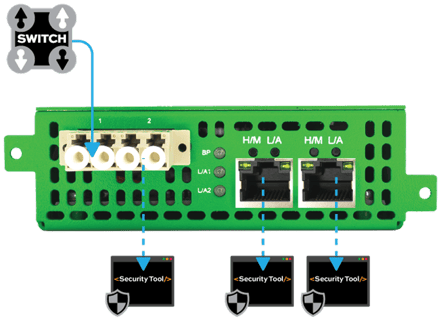

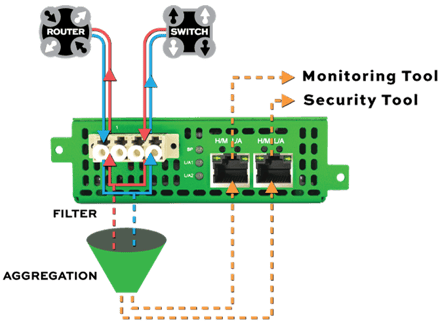

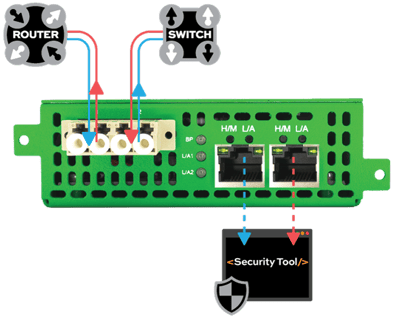

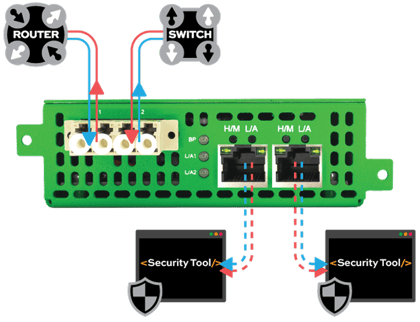

Support TAP modes: breakout, aggregation, regeneration, and filtering
Portable and durable, metal chassis
Plug & Play installation
1U rack mount kit holds up to 4 portable TAPs
No IP address, no Mac address
No subscription, port, feature, software, or license fees

Benefits

Security and monitoring tools receive 100% of the packets
No dropped packets ensuring reliable visibility
Easy to install with zero configuration required
No impact on the live network
Invisible to hackers

REQUEST A QUOTE

Part Number	Network Speed	Ports	Split Ratio	Management
P1GMCFE	1G	(2) SX-Multimode Network Ports(2) Copper Monitoring Ports	N/A	Managed
P1GMSFE	1G	(2) SX-Multimode Network Ports(2) SFP Monitoring Ports	N/A	Managed
P10GMSFE-5	1G/10G	(2) SR-Multimode Network Ports(2) SFP+ Monitoring Ports	50/50	Managed
P10GMSFE-6	1G/10G	(2) SR-Multimode Network Ports(2) SFP+ Monitoring Ports	60/40	Managed
P10GMSFE-7	1G/10G	(2) SR-Multimode Network Ports(2) SFP+ Monitoring Ports	70/30	Managed
