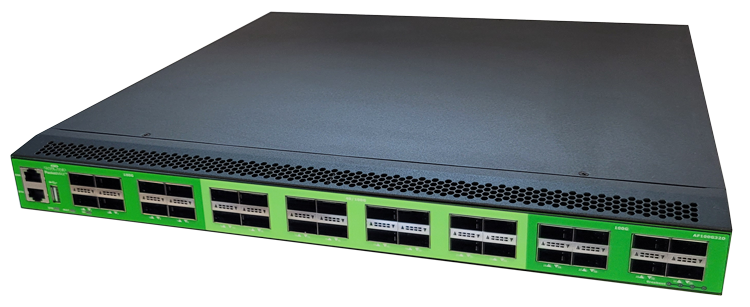

AF100G32DAC
Advanced Feature Network Packet Broker with Deduplication
1U NPB with 32 Ports
Garland Technology’s Advanced Features Network Packet Brokers with Deduplication deliver advanced packet processing, deduplication, and intelligent filtering in a high-density platform. These Advanced Features NPBs are built to extend the feature set of existing packet brokers, security tools, and monitoring tools.
Garland Technology’s AF100G32DAC and AF100G32DDC is a NPB that supports up to 20Gigbaits of deduplication. Duplicate packets are one of those things that happen in a busy IT network, especially if relying on SPAN mirroring. Although using different network equipment and optimizing your network will minimize duplicates, they’ll still crop up on a fairly regular basis. This can be a problem for your monitoring tools, because analyzing duplicate packets can take up their processing resources while also throwing off your analytics. A Deduplication Network Packet Broker remediates this issue by finding and removing duplicate packets before they can reach your analytics tools.
There are no additional per-port license fees and it is compatible with MSA compliant SFP+/ QSFP+ pluggables/transceivers.
Specifications
Part # |
Network Speed |
Port Count |
Port Summary |
Power Type |
|---|---|---|---|---|
AF100G32DAC |
40G/100G |
(32) QSFP28 Port |
Ports 1-8 are QSFP28 100G Ports
|
AC |
AF100G32DDC |
40G/100G |
(32) QSFP28 Ports |
Ports 1-8 are QSFP28 100G Ports
|
DC |
Network Speed:
40G/100G
Port Count:
(32) QSFP28 Port
Port Summary:
Ports 1-8 are QSFP28 100G Ports
Ports 9-24 are QSFP28 100G/40G/4x25G/4x10G Ports
Ports 25-32 are QSFP28 100G Ports
Power Type:
AC
Network Speed:
40G/100G
Port Count:
(32) QSFP28 Ports
Port Summary:
Ports 1-8 are QSFP28 100G Ports
Ports 9-24 are QSFP28 100G/40G/4x25G/4x10G Ports
Ports 25-32 are QSFP28 100G Ports
Power Type:
DC
