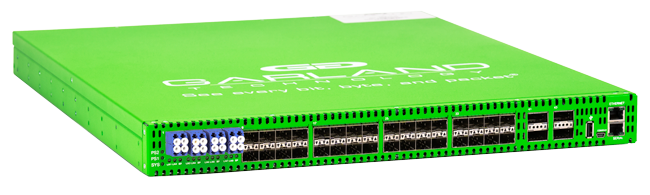

Garland Technology Network TAP Packet Broker Hybrid 1U

Garland Technology’s Network TAP and Packet Broker hybrids combine our high-quality Network TAPs with our high-density Packet Brokers. Enjoy Network TAP visibility with Packet Broker functionality like filtering, aggregation and load balancing. Streamlining modern visibility fabrics to save rack space and budget, spend providing network tools the ultimate in traffic visibility optimization.

The Network TAP Packet Broker Hybrids provide full duplex TAP visibility, critical for out-of-band monitoring. The packet broker functionality provides traffic aggregation, layer 2-4 filtering, session/flow aware load balancing and configurable hash-based load balancing, utilization alerts, as well as the ability for remote management. Of course, similar to all Garland Technology product, there are no license or port fees - ever.

INT10G8LR56-X

Key Features

(4) 1G/10G Network TAPs – Single Mode or Multimode versions available
Multiple split ratios available: 50/50, 60/40, 70/30, 80/20, 90/10
(32) 1G/10G SFP/SFP+ Ports
(4) 40G QSFP+ Ports (QSFP+ ports can be 4x10G)
Supports filtering, aggregation, and load balancing
Aggregate network traffic to a single or multiple tools
Layers 2-4 filtering
1k filters (full line rate filtering) that are user defined
Port splitting functionality
Supports jumbo frames
Flow replication and port mirroring
TACACS+ authentication
Syslog and NTP support
Simple easy to use GUI management
Rest API for integration
Hot swappable, dual power supplies
Durable metal chassis

Benefits

Space saving design with TAPs and Packet Broker in a single chassis
In a single device (in a 1U space), you can TAP up to 4 links and broker the copies out the 32 SFP/SFP+ ports and the 4 QSFP+ ports in the same device
Multiple monitoring and security tools receive the same copies of traffic
Packet Broker ports can be input or output ports
Reduce the quantity of monitor links to a number that is more manageable for the out of band network tool or tools
Security and monitoring tools receive 100% of the packets
No dropped packets ensuring reliable visibility
Free up ports on an existing (and possibly expensive) Network Packet Broker
Achieve greater ROI out of deployed 1G tools
Reduce network complexity
Enable infrastructure upgrades
Facilitate traffic growth
Deliver relevant traffic to tools
Compatible with MSA compliant SFP+ and QSFP+ transceivers

REQUEST A QUOTE

Part #	Network Speed	Fixed Ports	Split Ratio
INT10G8SR56-5	(4) 1G/10G SR MMF TAPs	(32) 1G/10G SFP/SFP+ Ports (4) 40G QSFP+ Ports	50/50
INT10G8SR56-6	(4) 1G/10G SR MMF TAPs	(32) 1G/10G SFP/SFP+ Ports (4) 40G QSFP+ Ports	60/40
INT10G8SR56-7	(4) 1G/10G SR MMF TAPs	(32) 1G/10G SFP/SFP+ Ports (4) 40G QSFP+ Ports	70/30
INT10G8SR56-8	(4) 1G/10G SR MMF TAPs	(32) 1G/10G SFP/SFP+ Ports (4) 40G QSFP+ Ports	80/20
INT10G8SR56-9	(4) 1G/10G SR MMF TAPs	(32) 1G/10G SFP/SFP+ Ports (4) 40G QSFP+ Ports	90/10
INT10G8LR56-5	(4) 1G/10G LR SMF TAPs	(32) 1G/10G SFP/SFP+ Ports (4) 40G QSFP+ Ports	50/50
INT10G8LR56-6	(4) 1G/10G LR SMF TAPs	(32) 1G/10G SFP/SFP+ Ports (4) 40G QSFP+ Ports	60/40
INT10G8LR56-7	(4) 1G/10G LR SMF TAPs	(32) 1G/10G SFP/SFP+ Ports (4) 40G QSFP+ Ports	70/30
INT10G8LR56-8	(4) 1G/10G LR SMF TAPs	(32) 1G/10G SFP/SFP+ Ports (4) 40G QSFP+ Ports	80/20
INT10G8LR56-9	(4) 1G/10G LR SMF TAPs	(32) 1G/10G SFP/SFP+ Ports (4) 40G QSFP+ Ports	90/10
