Mira Security Encrypted Traffic Orchestration
Safe and secure visibility into encrypted traffic

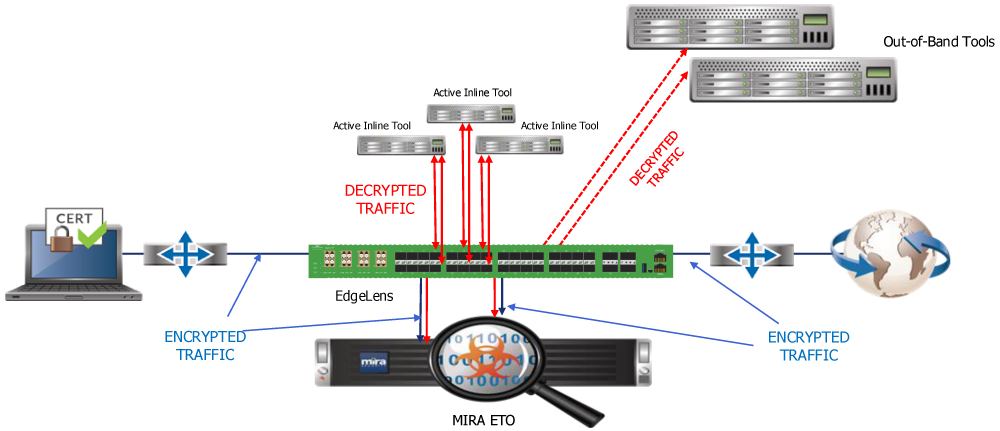

Mira Security’s Encrypted Traffic Orchestration (ETO) provides safe and secure visibility into encrypted network traffic. ETO allows the tools used by enterprise security teams to function effectively, even when all the important traffic is encrypted. Enabling the enterprise security stack to consistently detect and mitigate threats, while providing features to enable privacy and ensure compliance requirements can be met, is central to Mira ETO software. Mira ETO software decrypts traffic and feeds it to one or more security tools that actually detect and mitigate any threats that may be present. No special interfaces or software changes are required to the security tools; they simply receive traffic from Mira ETO as if it is traffic directly from the network.
Garland Technology is the exclusive distributor for Mira’s standalone ETO (Encrypted Traffic Orchestrator).
Specifications
ETO Software Subscription Options for physical appliances
ETO License SKU |
ETOO-DL-1 |
ETOO-DL-2.5 |
ETOO-DL-5 |
ETOO-DL-10 |
ETOO-DL-15 |
ETOO-DL-20 |
ETOO-DL-30 |
ETOO-DL-40 |
ETOO-DL-50 |
|---|---|---|---|---|---|---|---|---|---|
Licensed Decrypt Gbps |
1 |
2.5 |
5 |
10 |
15 |
20 |
30 |
40 |
50 |
MAX Full TLS Session/s EC256 |
2000 |
5000 |
10000 |
15000 |
17000 |
22000 |
30000 |
40000 |
50000 |
Max Full TLS Sessions/s RSA 2048 |
2000 |
5000 |
7000 |
12000 |
14000 |
18000 |
25000 |
30000 |
35000 |
License Compatability
A License can be used on either a virtual appliance or on one of the hardware appliances available from Mira Security. The following matrix shows which licenses can be used on specific hardware appliance models:
Appliance Model Capabilities
Appliance Model SKU |
Interfaces / Speeds |
Max Segments |
Max SSL Flows/ Segment |
Max SSL Flows |
Max Session Log Entries |
Licensed Capacity Options |
|---|---|---|---|---|---|---|
HN-3-0610 |
6 / 1, 10 Gbps |
1 |
4M |
4M |
300M |
1, 2.5, 5, 10, 15 |
HN-3-1010 |
10 / 1, 10 Gbps |
2 |
2M |
4M |
300M |
1, 2.5, 5, 10, 15 |
HN-5-1025 |
10 / 1, 10, 25 Gbps |
2 |
5M |
10M |
300M |
5, 10, 15, 20, 30 |
HN-7-1240 |
12 / 40 Gbps
|
3 (40 Gbps)
|
5M |
20M |
300M |
15, 20, 30, 40, 50 |
ETO Software Subscription Options for physical appliances
ETOO-DL-1:
1
ETOO-DL-2.5:
2.5
ETOO-DL-5:
5
ETOO-DL-10:
10
ETOO-DL-15:
15
ETOO-DL-20:
20
ETOO-DL-30:
30
ETOO-DL-40:
40
ETOO-DL-50:
50
ETOO-DL-1:
2000
ETOO-DL-2.5:
5000
ETOO-DL-5:
10000
ETOO-DL-10:
15000
ETOO-DL-15:
17000
ETOO-DL-20:
22000
ETOO-DL-30:
30000
ETOO-DL-40:
40000
ETOO-DL-50:
50000
ETOO-DL-1:
2000
ETOO-DL-2.5:
5000
ETOO-DL-5:
7000
ETOO-DL-10:
12000
ETOO-DL-15:
14000
ETOO-DL-20:
18000
ETOO-DL-30:
25000
ETOO-DL-40:
30000
ETOO-DL-50:
35000
License Compatability
A License can be used on either a virtual appliance or on one of the hardware appliances available from Mira Security. The following matrix shows which licenses can be used on specific hardware appliance models:
Appliance Model Capabilities
Appliance Model SKU:
HN-3-0610
Interfaces / Speeds:
6 / 1, 10 Gbps
Max Segments:
1
Max SSL Flows/ Segment:
4M
Max SSL Flows:
4M
Max Session Log Entries:
300M
Licensed Capacity Options:
1, 2.5, 5, 10, 15
Appliance Model SKU:
HN-3-1010
Interfaces / Speeds:
10 / 1, 10 Gbps
Max Segments:
2
Max SSL Flows/ Segment:
2M
Max SSL Flows:
4M
Max Session Log Entries:
300M
Licensed Capacity Options:
1, 2.5, 5, 10, 15
Appliance Model SKU:
HN-5-1025
Interfaces / Speeds:
10 / 1, 10, 25 Gbps
Max Segments:
2
Max SSL Flows/ Segment:
5M
Max SSL Flows:
10M
Max Session Log Entries:
300M
Licensed Capacity Options:
5, 10, 15, 20, 30
Appliance Model SKU:
HN-7-1240
Interfaces / Speeds:
12 / 40 Gbps
or
24 / 10 Gbps
(Breakout)
Max Segments:
3 (40 Gbps)
or
6 (Breakout)
Max SSL Flows/ Segment:
5M
Max SSL Flows:
20M
Max Session Log Entries:
300M
Licensed Capacity Options:
15, 20, 30, 40, 50
