Network Packet Broker without Passive TAPs
1U NPB with Eight Fixed Ports
Garland Technology’s Network Packet Broker without Passive TAPs is a full featured packet broker with eight (8) fixed ports. It supports network speeds of 1G, 10G, and 40G. The fixed ports utilize internal optics with either Single Mode or Multimode connectors on the faceplate giving you the capability to connect to fiber environments.
Specifications
Part # |
Network Speed |
Fixed Ports |
Packet Broker Ports |
|---|---|---|---|

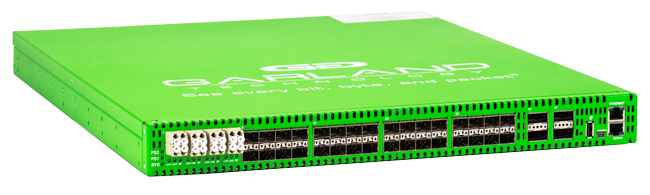

INT10G8SR56-SP |
1G/10G/40G |
(8) MMF 1G-SX / 10G-SR Ports |
(32) 1G/10G SFP/SFP+ Ports
|

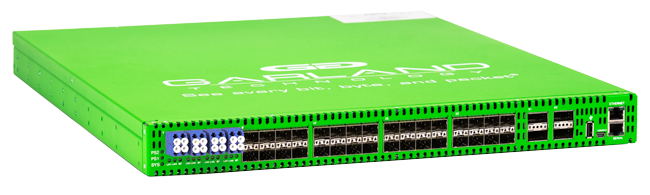

INT10G8LR56-SP |
1G/10G/40G |
(8) SMF 1G-LX / 10G-LR Ports |
(32) 1G/10G SFP/SFP+ Ports
|
Network Speed:
1G/10G/40G
Fixed Ports:
(8) MMF 1G-SX / 10G-SR Ports
Packet Broker Ports:
(32) 1G/10G SFP/SFP+ Ports
(4) 40G QSFP+ Ports
Network Speed:
1G/10G/40G
Fixed Ports:
(8) SMF 1G-LX / 10G-LR Ports
Packet Broker Ports:
(32) 1G/10G SFP/SFP+ Ports
(4) 40G QSFP+ Ports
