PCIe Network TAPs
Easily incorporate TAPs into network appliances
Network visibility starts at the packet level. A network TAP is a hardware device that allows you to access and monitor your network traffic by copying packets without impacting or compromising network integrity.

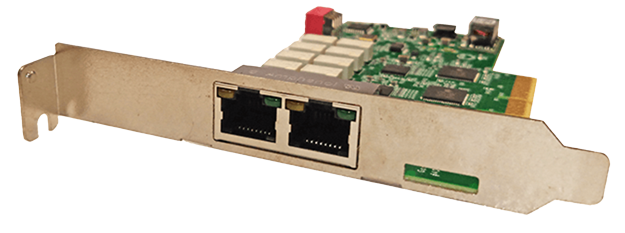

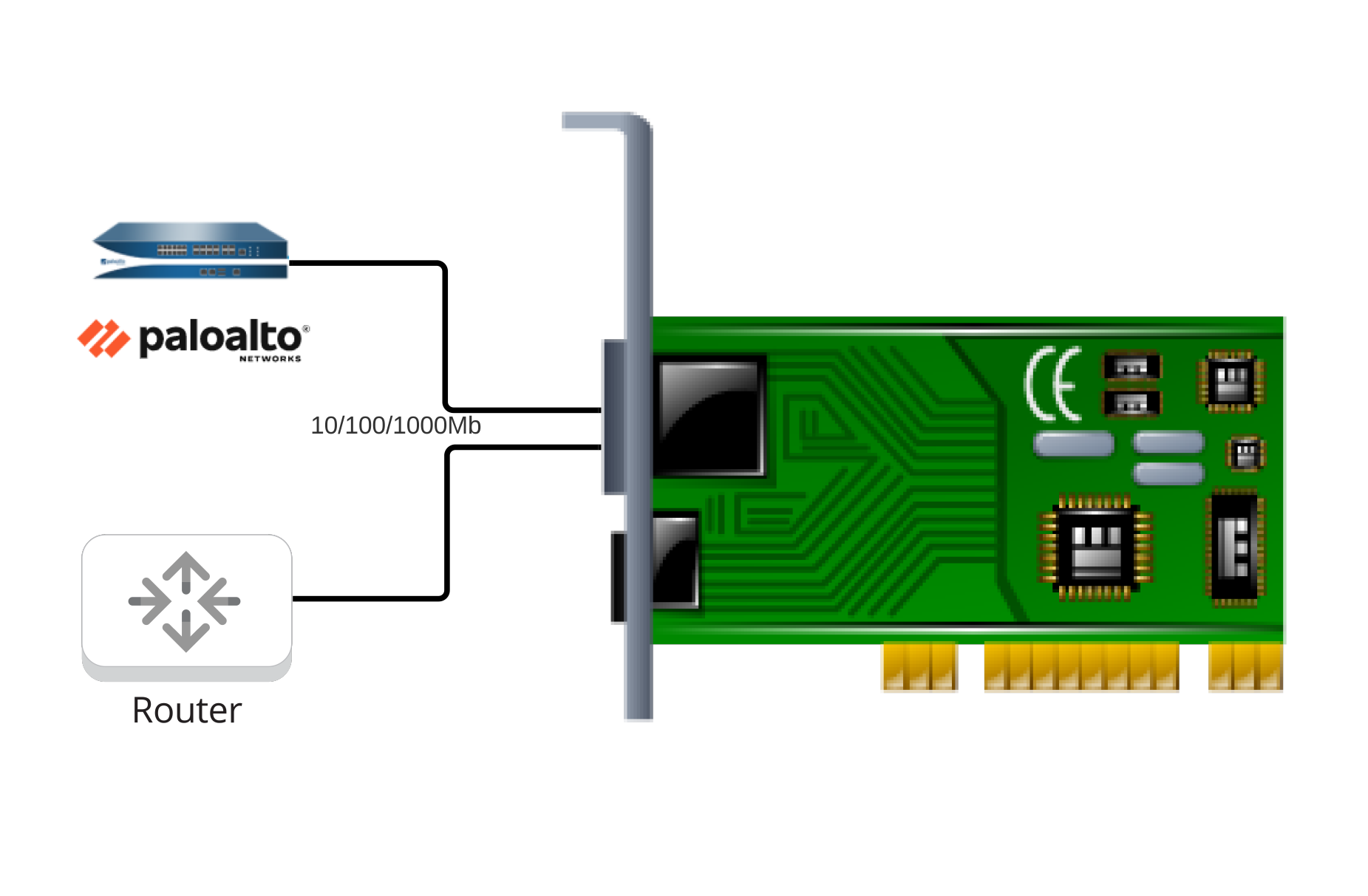

These unique PCIe network TAPs are ideal for integrating TAP functionality into existing network appliances or PCs with an open PCIe slot. TAP a Copper, Multimode Fiber, or Single Mode Fiber network connection and receive copies of the network traffic directly into the network appliance or PC.
Specifications
Part # |
Network Speed |
Ports |
Power |
|---|---|---|---|
PCIE1GCUA |
10/100/1000M (1G) |
(2) Copper Network Ports
|
PCIe |
PCIE1GCA |
10/100/1000M (1G) |
(2) Copper Network Ports
|
PCIe |
PCIE10GLRA |
1G/10G |
(2) LR Single Mode Fiber Network Ports
|
PCIe |
PCIE10GSRA |
1G/10G |
(2) SR Multimode Fiber Network Ports
|
PCIe |
Network Speed:
10/100/1000M (1G)
Ports:
(2) Copper Network Ports
(1) USB Monitoring Port
Power:
PCIe
Network Speed:
10/100/1000M (1G)
Ports:
(2) Copper Network Ports
(1) PCIe Monitoring Port
Power:
PCIe
Network Speed:
1G/10G
Ports:
(2) LR Single Mode Fiber Network Ports
(1) PCIe Monitoring Port
Power:
PCIe
Network Speed:
1G/10G
Ports:
(2) SR Multimode Fiber Network Ports
(1) PCIe Monitoring Port
Power:
PCIe
