Pluggables and Cables

Network Management And Connectivity

Connect your tools and TAPs to your network with quality made pluggables for ethernet copper and fiber optic networks.

Garland Technology offers SFP, SFP+, QSFP+ pluggables that support 10/100/1000M copper and 1 Gigabit, 10 Gigabit, 40 Gigabit and 100 Gigabit. Custom cable lengths are available in 1’ and 1m increments.

Pluggables and Cables Pluggables and Cables Pluggables and Cables Pluggables and Cables Pluggables and Cables
Pluggables and Cables
Pluggables and Cables
Pluggables and Cables
Pluggables and Cables
Pluggables and Cables
Pluggable Transceivers
Model No. Speed Description

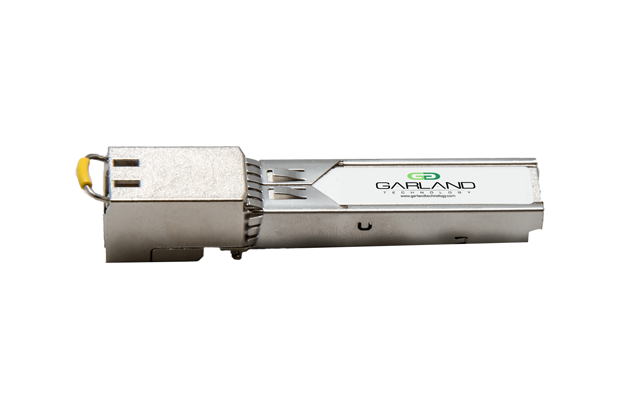

SFPTX   1 Gbps 1000BASE-TX, SFP 10/100/1000 RJ45 copper

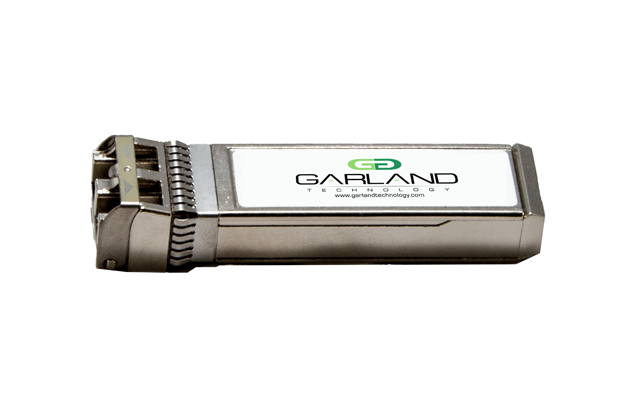

SFPSX  1 Gbps 1000BASE-SX, SFP Multimode Fiber 850nm

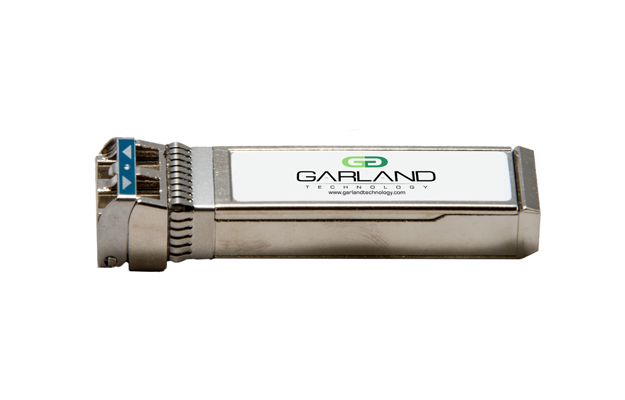

SFPLX  1 Gbps 1000BASE-LX, SFP Singlemode Fiber 1310nm - 10km
SFPEX40km 1 Gbps 1000BASE-EX, SFP Singlemode Fiber 1310nm - 40km
SFPEX90km 1 Gbps 1000BASE-EX, SFP Singlemode Fiber 1550nm - 90km
SFP+T 10 Gbps 10GBASE-T, SFP+ 100M/1G/10G RJ45 Copper
SFP+SR 10 Gbps 10GBASE-SR, SFP+ Multimode Fiber 850nm (1 or 10Gbps)
SFP+LR 10 Gbps 10GBASE-LR, SFP+ Singlemode Fiber 1310nm - 10km (1 or 10Gbps)
SFP+ER 10 Gbps 10GBASE-ER, SFP+ Singlemode Fiber 1550nm - 40km
SFP+ZR80 10 Gbps 10GBASE-ZR, SFP+ Singlemode Fiber 1550nm - 80km
SFP+SR10G 10 Gbps 10GBASE-SR, SFP+ Multimode Fiber 850nm (only supports 10G)
SFP+LR10G 10 Gbps 10GBASE-LR, SFP+ Singlemode Fiber 1310nm - 10km (only supports 10G)

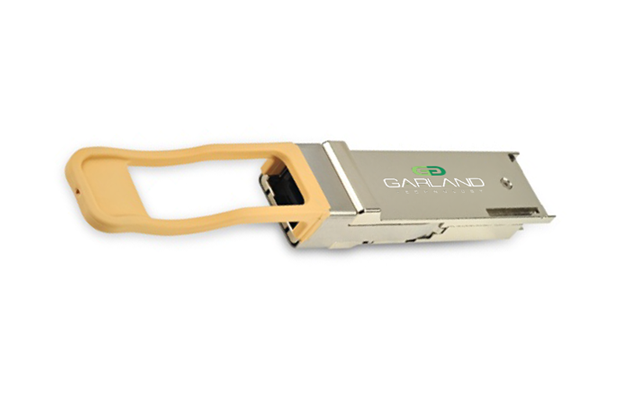

QSFP+40G 40 Gbps  40GBASE-SR4, QSFP+ Multimode Fiber, MPO/MTP-12 Connector
QSFP+40G-LR4 40 Gbps  40GBASE-LR4, QSFP+ Singlemode Fiber, LC Connector
QSFP+10GLR 40 Gbps 40GBASE-LR Singlemode with MTP/MPO connector for Fan-out cables
QSFP+40GBiDi 40 Gbps  40GBASE-SR BiDi, QSFP+ Multimode Fiber with LC Connectors
QSFP+40GBiDi_RX 40 Gbps 40GBASE-SR BiDi, QSFP+ Multimode Fiber with RX Connectors
QSFP+28SR4 100 Gbps  100GBASE-SR4, QSFP+28 Multimode Fiber, MPO/MTP-12 Connector
QSFP+28LR4 100 Gbps 100GBASE-LR4, QSFP+28 Singlemode Fiber, LC Connector


Cables
Model No. Description
Twinax/Direct Attach Cables:
TWINAX1M Twinax Copper Direct Connect Cable SFP+ to SFP+ 10Gigabit, Pre-Cut 1 Meter
TWINAX3M Twinax Copper Direct Connect Cable SFP+ to SFP+ 10Gigabit, Pre-Cut 3 Meter
TWINAX5M Twinax Copper Direct Connect Cable SFP+ to SFP+ 10Gigabit, Pre-Cut 5 Meter
TWINSX7M Twinax Copper Direct Connect Cable SFP+ to SFP+ 10Gigabit, Pre-Cut 7 Meter
TWINAX10M Twinax Copper Direct Connect Cable SFP+ to SFP+ 10Gigabit, Pre-Cut 10 Meter
TWINAX40G.5M Direct Attach Copper Cable QSFP+ to QSFP+ 40Gigabit, Pre-Cut Half Meter

TWINAX40G1M

 Direct Attach Copper Cable QSFP+ to QSFP+ 40Gigabit, Pre-Cut 1 Meter
TWINAX40G2M Direct Attach Copper Cable QSFP+ to QSFP+ 40Gigabit, Pre-Cut 2 Meter
TWINAX40G3M Direct Attach Copper Cable QSFP+ to QSFP+ 40Gigabit, Pre-Cut 3 Meter
TWINAX100G1M Direct Attach Copper Cable QSFP28 to QSFP28 100Gigabit, Pre-Cut 1 Meter
TWINAX100G3M Direct Attach Copper Cable QSFP28 to QSFP28 100Gigabit, Pre-Cut 3 Meter
TWINAX100G5M Direct Attach Copper Cable QSFP28 to QSFP28 100Gigabit, Pre-Cut 5 Meter

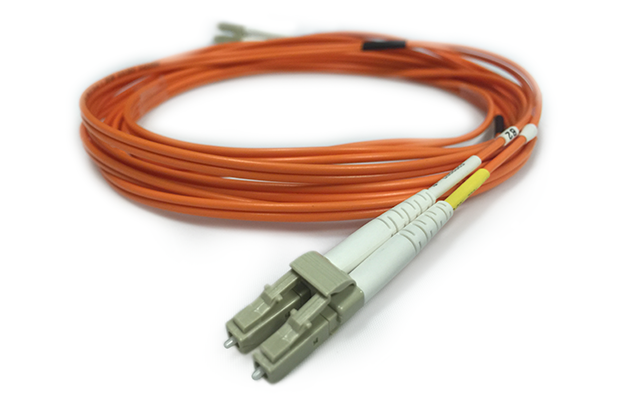

Fan-out Cables: QSFP to LC Connections
MTP12F-LC8MOM4_3 MPO/MTP to 8x10Gb Multimode Fiber connections with LC connectors, 3 Meters (Cable)
MTP12F-LC8MOS2_3 MPO/MTP to 8x10Gb Singlemode Fiber connections with LC connectors, 3 Meters (Cable)
Breakout Cables: QSFP to 10G SFP+ Connections
QSFP-4SFP+_1 Direct Attach Copper Cable QSFP+ to 4x 10Gb SFP+, Pre-Cut 1 Meter
QSFP-4SFP+_2 Direct Attach Copper Cable QSFP+ to 4x 10Gb SFP+, Pre-Cut 2 Meter
QSFP-4SFP+_3 Direct Attach Copper Cable QSFP+ to 4x 10Gb SFP+, Pre-Cut 3 Meter
Breakout Cables: 100G QSFP28 to 25G SFP28 Connections
QSFP28-4SFP28-Cable_1 Direct Attach Copper Cable QSFP28 to 4x 25Gb SFP28, Pre-Cut 1 Meter
QSFP28-4SFP28-Cable_3 Direct Attach Copper Cable QSFP28 to 4x 25Gb SFP28, Pre-Cut 3 Meter



Interested in purchasing this product? Simply fill out this request a quote and one of our team members will contact you. Thank you.

Request a Quote
