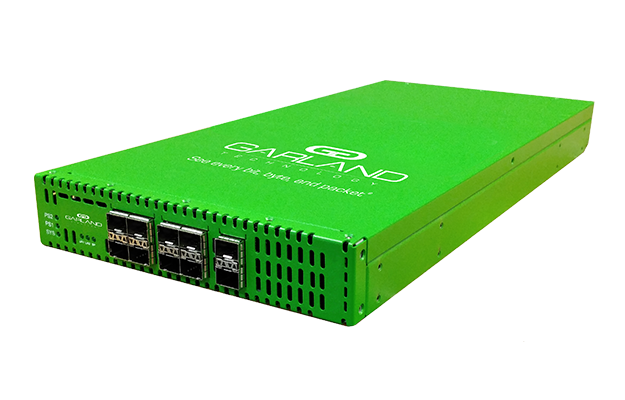

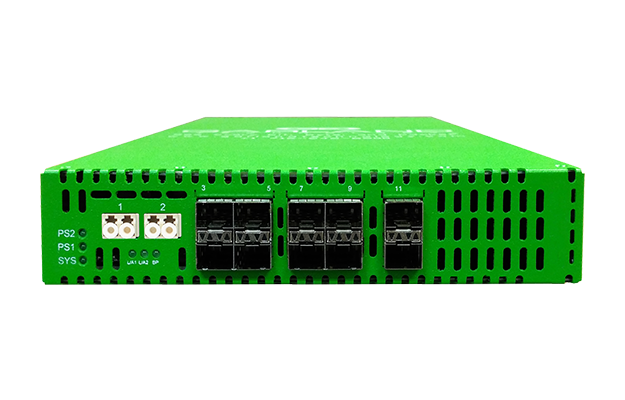

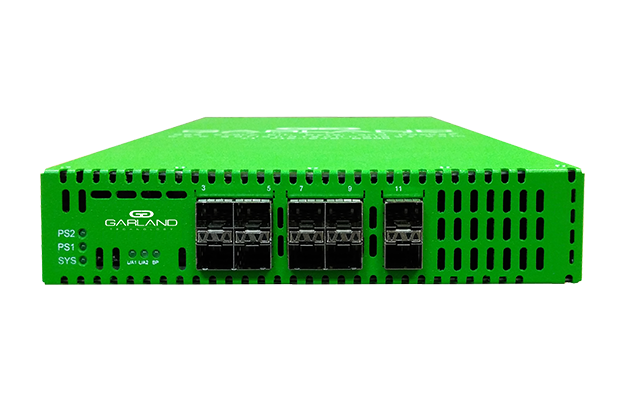

RegenTAP: Dual Breakout

10G | 10 or 12 Ports | 2 TAPs in 1 | Provide Multiple Copies of Data

Network test access points (TAPs) are purpose-built hardware devices that allow you to access and monitor your network, letting you see every bit, byte and packet.®

Regeneration or regenerator TAPs are used to capture 100% full duplex traffic that can be sent to multiple monitoring appliances to analyze your network.

The RegenTAP: Dual Breakout is a multifaceted appliance that houses two TAPs in one, and provides multiple tap ‘breakout’ copies of data for additional applications. Ideal for direct connect, SFP, QSFPs, active cable infrastructures.

RegenTAP: Dual Breakout RegenTAP: Dual Breakout RegenTAP: Dual Breakout RegenTAP: Dual Breakout
RegenTAP: Dual Breakout
RegenTAP: Dual Breakout
RegenTAP: Dual Breakout
RegenTAP: Dual Breakout

Key Features

  • Provide multiple tap ‘breakout’ copies of Tx/Rx traffic from single link
  • Network Failsafe or passive design

  • Supports jumbo frames

  • Link Failure Propagation (LFP)

Additional

  • Dual Breakout SPAN 1x4 available
  • OEO design [optical to electrical to optical]

  • 100% secure and invisible; no IP address, no MAC address; cannot be hacked

  • Plug and play; no management

  • Dual internal AC power supplies

  • Made, tested and certified in the USA

Dual Breakout Option 1
Model No. Ports Network Speed Ports Power

INT10G10V1

EdgeLensFocus-DualBreakout-no-mgmt 10G (10) SFP+ 120W

Dual Breakout Option 2
Model No. Ports Network Speed Split Ratio Network Failsafe Monitor Power

INT10G12SSV2

EdgeLensFocus-SMF-no-mgmt 10G -

LR Single mode Fiber

Failsafe

 SFP+ 120W

INT10G12MSV2

EdgeLensFocus-MMF-no-mgmt 10G -

SR Multi-mode Fiber

Failsafe

 SFP+ 120W

INT10G12SSV2-5

EdgeLensFocus-SMF-no-mgmt 10G

50/50

LR Single mode Fiber

Passive

 SFP+ 120W

INT10G12SSV2-6

EdgeLensFocus-SMF-no-mgmt 10G

60/40

LR Single mode Fiber

Passive

 SFP+ 120W

INT10G12SSV2-7

EdgeLensFocus-SMF-no-mgmt 10G

70/30

LR Single mode Fiber

Passive

 SFP+ 120W

INT10G12MSV2-5

EdgeLensFocus-MMF-no-mgmt 10G

50/50

SR Multi-mode Fiber

Passive

 SFP+ 120W

INT10G12MSV2-6

EdgeLensFocus-MMF-no-mgmt 10G

60/40

SR Multi-mode Fiber

Passive

 SFP+ 120W

INT10G12MSV2-7

EdgeLensFocus-MMF-no-mgmt 10G

70/30

SR Multi-mode Fiber

Passive

 SFP+ 120W

Custom split ratios are available in 80/20 or 90/10, please inquire.



Dual SPAN Regeneration 1x4
Model No. Ports Network Speed Ports Power

INT10G10SP2

 EdgeLensFocus-DualBreakout-no-mgmt 1G/10G (10) SFP+ 120W
Dualbreakout1-1 Dualbreakout2 Dual Breakout SPAN

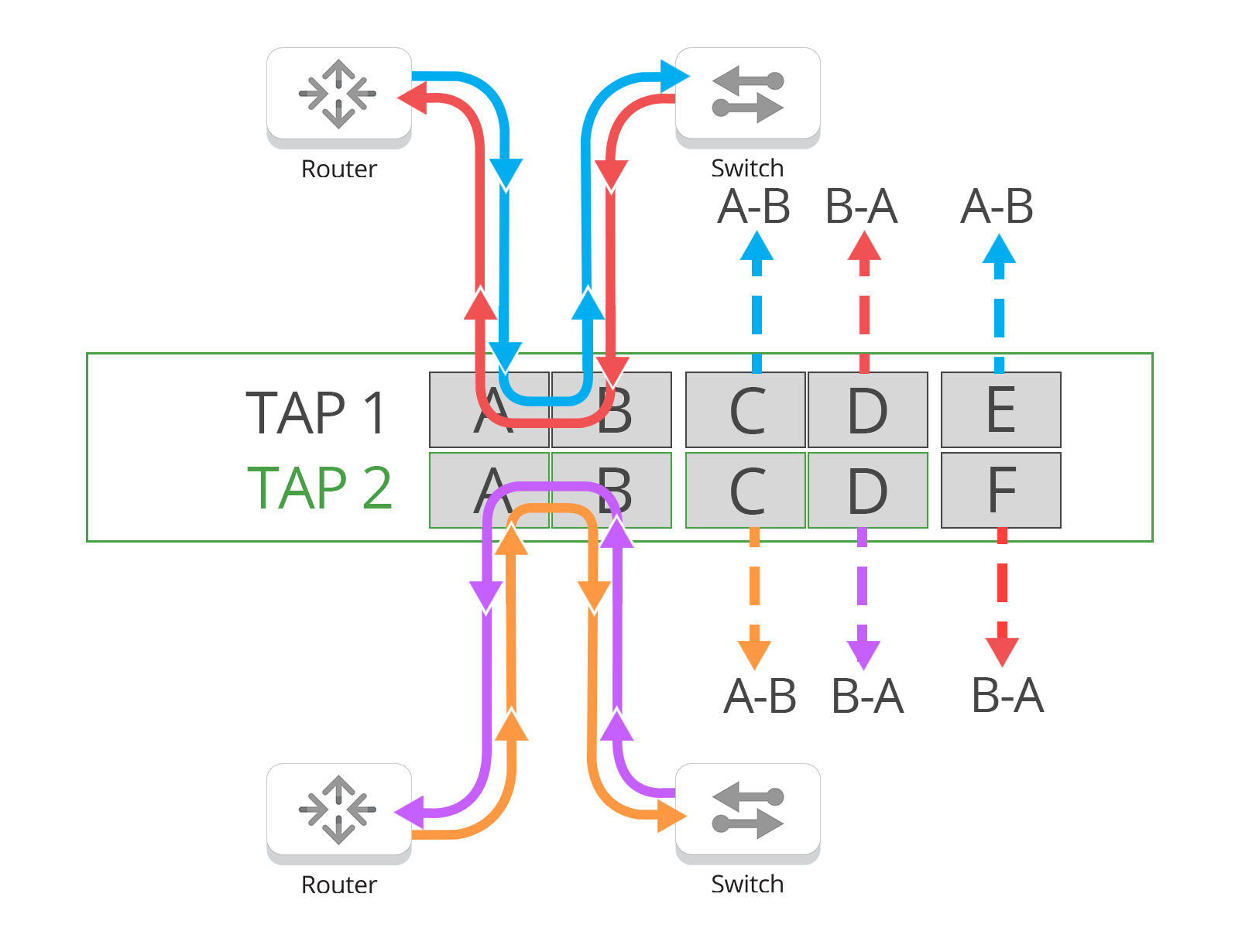

Dual Breakout Option 1

TAP1 - 4 tap ‘breakout’ ports [2 TX / 2 RX]

TAP2 - 2 tap ‘breakout’ ports [1 TX / 1 RX]

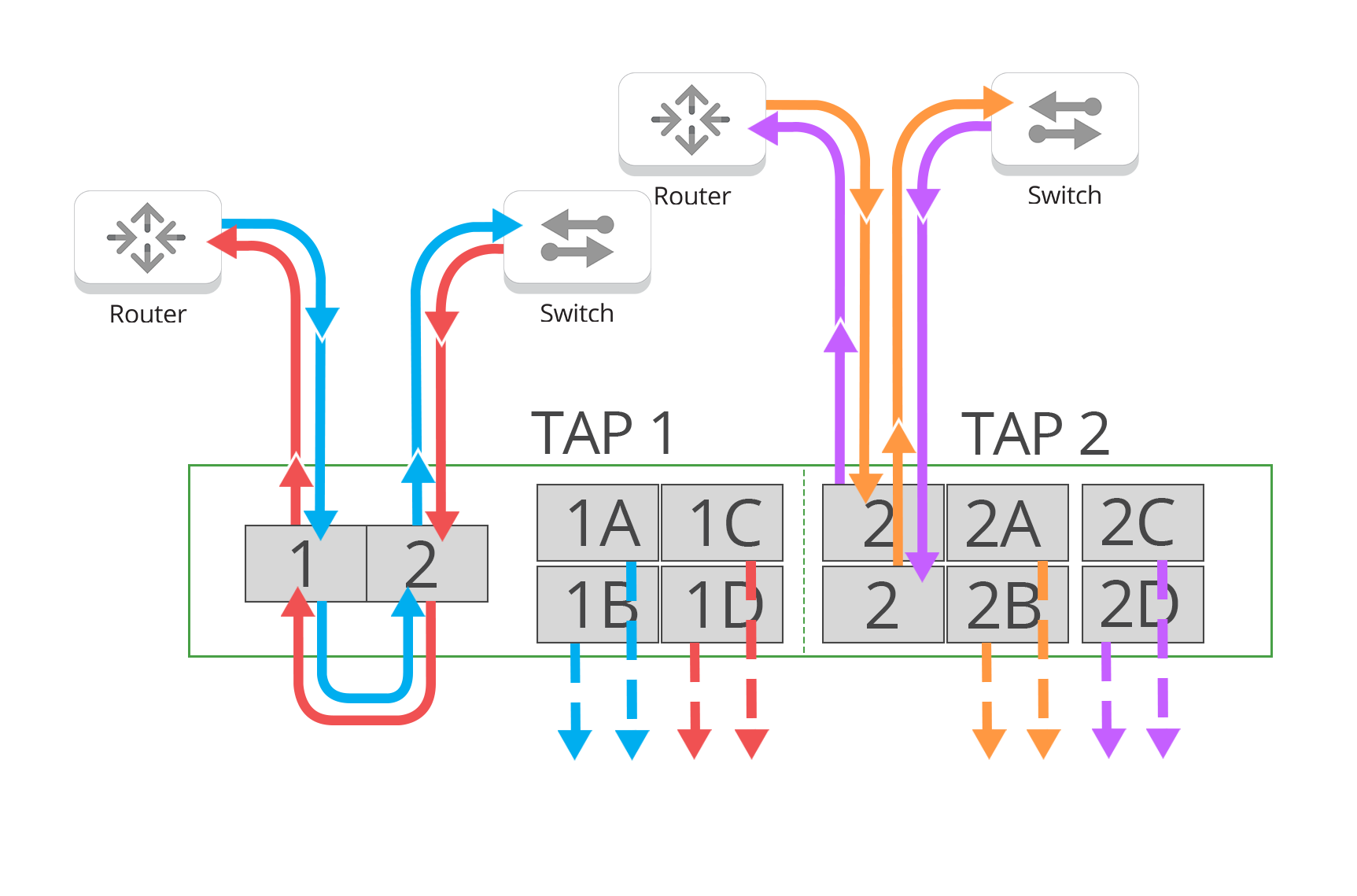

Dual Breakout Option 2

TAP1 - 4 tap ‘breakout’ ports [2 TX / 2 RX]

TAP2 - 4 tap ‘breakout’ ports [2 TX / 2 RX]

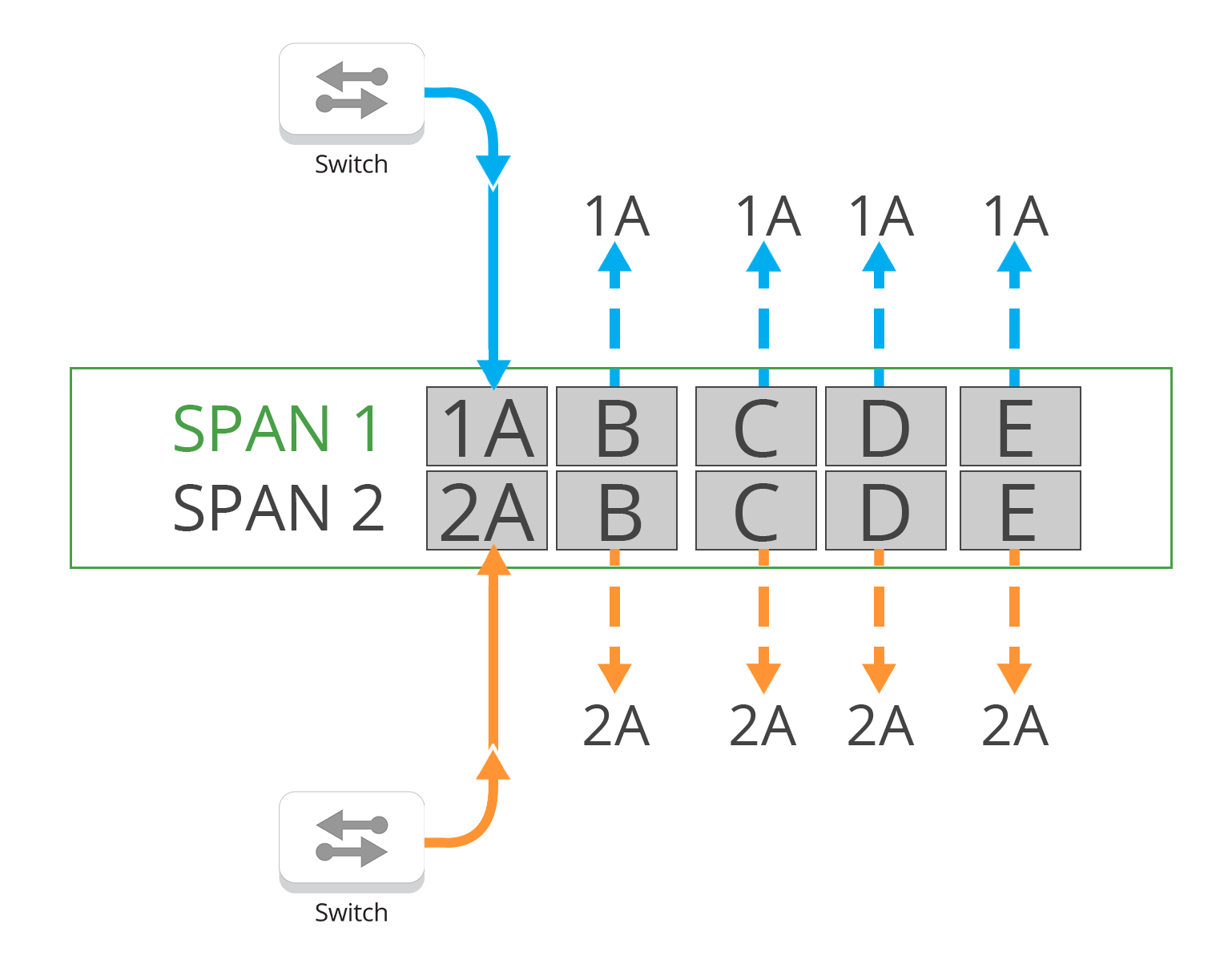

Dual SPAN Regeneration 1x4 Option 3

SPAN1 [1 RX / 4 TX copies]

SPAN 2 [1 RX / 4 TX copies]
Dualbreakout1-1 Dualbreakout2 Dual Breakout SPAN

Dual Breakout Option 1

TAP1 - 4 tap ‘breakout’ ports [2 TX / 2 RX]

TAP2 - 2 tap ‘breakout’ ports [1 TX / 1 RX]

Dual Breakout Option 2

TAP1 - 4 tap ‘breakout’ ports [2 TX / 2 RX]

TAP2 - 4 tap ‘breakout’ ports [2 TX / 2 RX]

Dual Breakout SPAN 1x4 Option 3

SPAN1 [1 TX / 4 RX copies]

SPAN 2 [1 TX / 4 RX copies]
